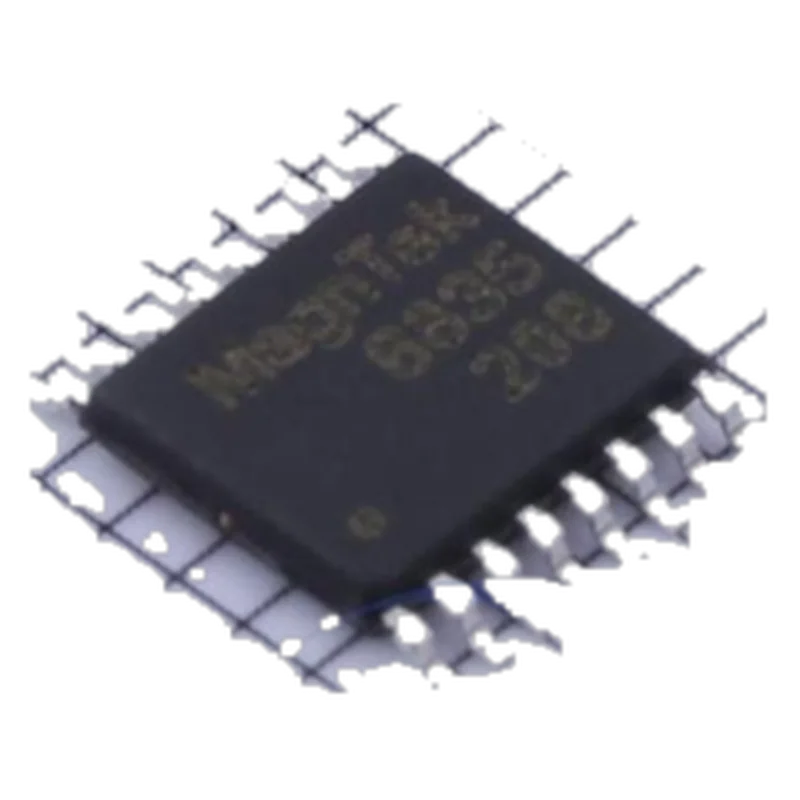

MagnTek MT6835 21-bit Magnetic Angle Encoder IC
MagnTek (NOVOSENSE) · MPN MT6835GT-STD-R · Maglev ID ac-magntek-mt6835gt-std
CN Maker in China, factory not confirmed unknown VERIFIED
21-bit AMR magnetic angle encoder IC from Shanghai MagnTek (now sold under NOVOSENSE); the Chinese high-resolution option for motor-side joint feedback.
Specifications
| Resolution | 21-bit core angle resolution (SPI absolute) |
|---|---|
| Accuracy | <±0.07° typ INL after customer self-calibration; ±0.5° typ / ±1.0° max with factory calibration only (max over -40 to 125 °C) |
| Max speed | 120,000 rpm |
| Interface | 4-wire SPI (21-bit absolute); ABZ (1-16,384 PPR programmable); UVW (1-16 pole pairs); PWM |
| Form | IC (TSSOP-16) |
| Sensing | AMR |
| Supply | 3.0-5.5 V (3.3 V or 5.0 V nominal) |
| Bore | n/a |
| Latency | 10 µs typ system delay at constant speed (front page: 2-10 µs) |
| Operating temp | -40 to 125 °C |
