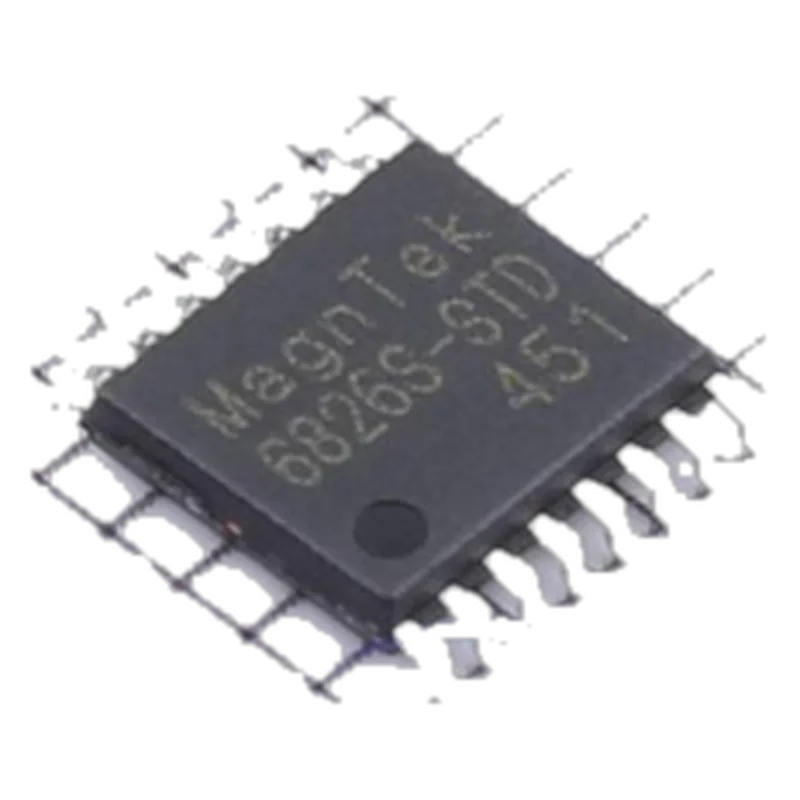

MagnTek MT6826S 15-bit Magnetic Angle Encoder IC
MagnTek (NOVOSENSE) · MPN MT6826SGT-STD-R · Maglev ID ac-magntek-mt6826sgt-std
CN Maker in China, factory not confirmed unknown VERIFIED
15-bit AMR angle encoder IC from MagnTek, the mid-range sibling of the MT6835 for motor commutation and position feedback.
Specifications
| Resolution | 15-bit absolute angle via SPI |
|---|---|
| Accuracy | ±0.1° typ INL after customer self-calibration (front page claims <±0.07°); ±0.5° typ / ±1.0° max with factory calibration only |
| Max speed | 120,000 rpm |
| Interface | 4-wire SPI (15-bit absolute); ABZ (1-4,096 PPR programmable); UVW; PWM |
| Form | IC (TSSOP-16) |
| Sensing | AMR |
| Supply | 3.0-5.5 V (3.3 V or 5.0 V nominal) |
| Bore | n/a |
| Latency | 10 µs typ system delay at constant speed (front page: 2-10 µs) |
| Operating temp | -40 to 125 °C |
