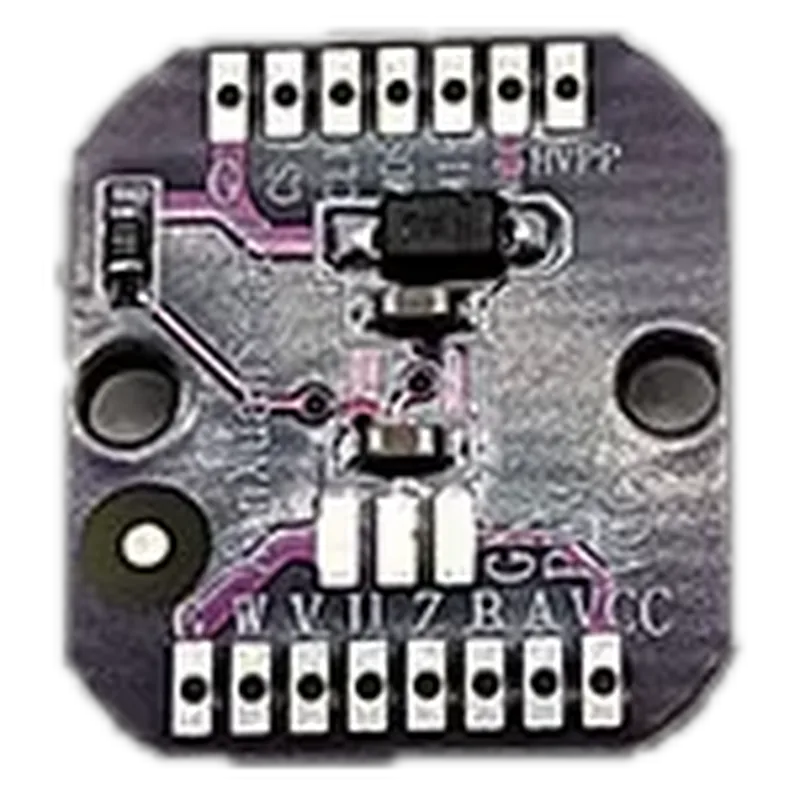

MT6835 21-bit Magnetic Encoder Module with Magnet (SPI / ABZ), AliExpress
Small breakout board for the MagnTek MT6835 21-bit AMR encoder sold with a magnet, programmed ABZ line count options; the cheapest way to try MT6835 on a SimpleFOC / ODrive joint.
Specifications
| Resolution | 21 bit (MT6835 core); ABZ variants 8,192 / 10,000 / 16,384 PPR |
|---|---|
| Accuracy | MT6835 INL <±0.07° after self-calibration (IC datasheet) |
| Max speed | 120,000 rpm (MT6835 IC rating) |
| Interface | SPI; ABZ; PWM (listing); IC also offers UVW |
| Form | eval / breakout board: MT6835 module + magnet |
| Sensing | AMR |
| Supply | 3.3 to 5.0 V (MT6835) |
| Bore / ring ID | n/a |
