ams OSRAM AS5047P Adapter Board
ams OSRAM · MPN AS5047P-TS_EK_AB · Maglev ID ac-ams-as5047p-ts-ek-ab
AT Maker in Austria, factory not confirmed unknown REPORTED
Breakout for the AS5047P on-axis magnetic encoder IC, the common motor-side encoder in open-source FOC drivers (ODrive/moteus-class).
Specifications
| Resolution | 14-bit core resolution (SPI readout); ABI programmable 100-4,096 steps/rev |
|---|---|
| Accuracy | INL ±1° max over full temperature with optimum magnet placement (±0.8° at 25 °C; ±1.2° with 0.5 mm x/y magnet displacement) |
| Max speed | 28,000 rpm |
| Interface | SPI; ABI incremental; UVW; PWM |

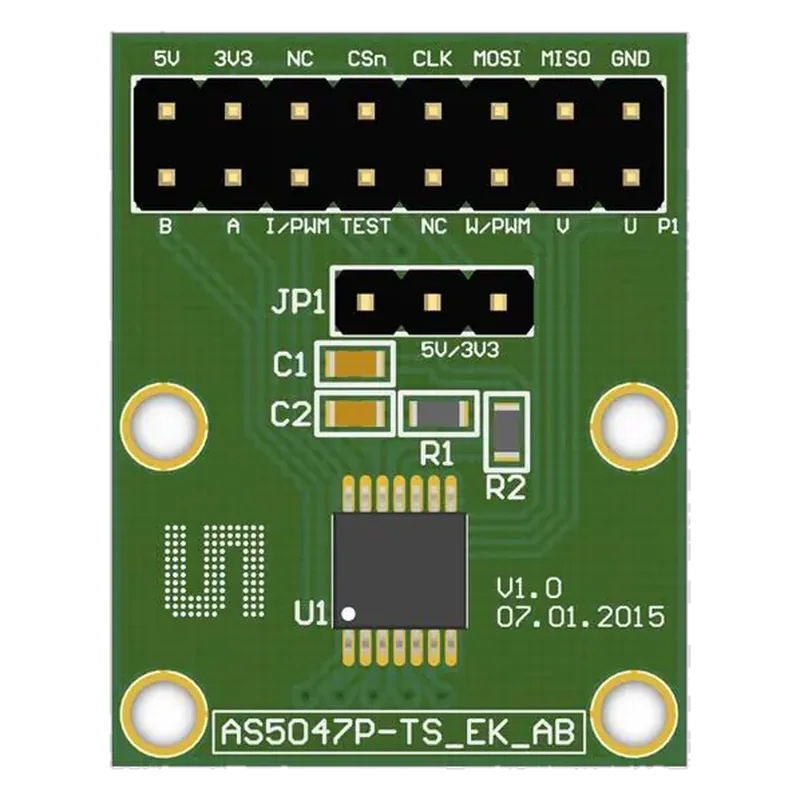

| Form | eval / breakout board (AS5047P TSSOP-14 on adapter PCB) |
| Sensing | Hall |
| Supply | 5.0 V mode 4.5-5.5 V, or 3.3 V mode 3.0-3.6 V |
| Bore | n/a |
| Latency | 1.5-1.9 µs at ABI/UVW after dynamic angle error compensation (DAEC); 90-110 µs core delay when reading angle via SPI |
| Operating temp | -40 to 125 °C (IC ambient) |
