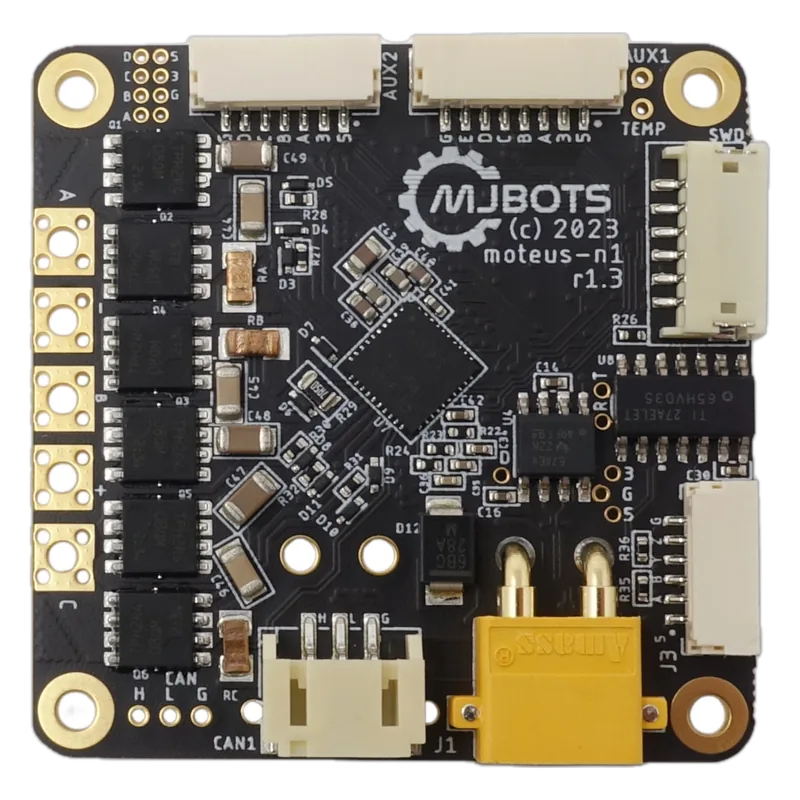

moteus-n1 Brushless Servo Controller
mjbots · MPN moteus-n1 · Maglev ID mo-moteus-n1
US Maker in United States, factory not confirmed unknown VERIFIED
46 x 46 mm, 12S-capable moteus with board-mountable connectors and aux ports (SPI/UART/I2C/Hall/quadrature, RS422) for custom actuator integration.
Specifications
| Bus voltage | 10-54 V (<=12S) |
|---|---|
| Continuous current | 9 A / 26 A phase (without / with thermal management) |
| Peak current | 100 A phase |
| Interface | 5 Mbps CAN-FD; RS422; aux SPI/UART/I2C |
| Feedback | Onboard absolute magnetic encoder; aux SPI, quadrature, Hall, I2C encoders |
| Peak electrical power | 2 kW @ 36 V |
| Mass | 14.6 g |
| Dimensions | 46 x 46 x 8 mm |
Who makes it
Makermjbots Robotic Systems
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
