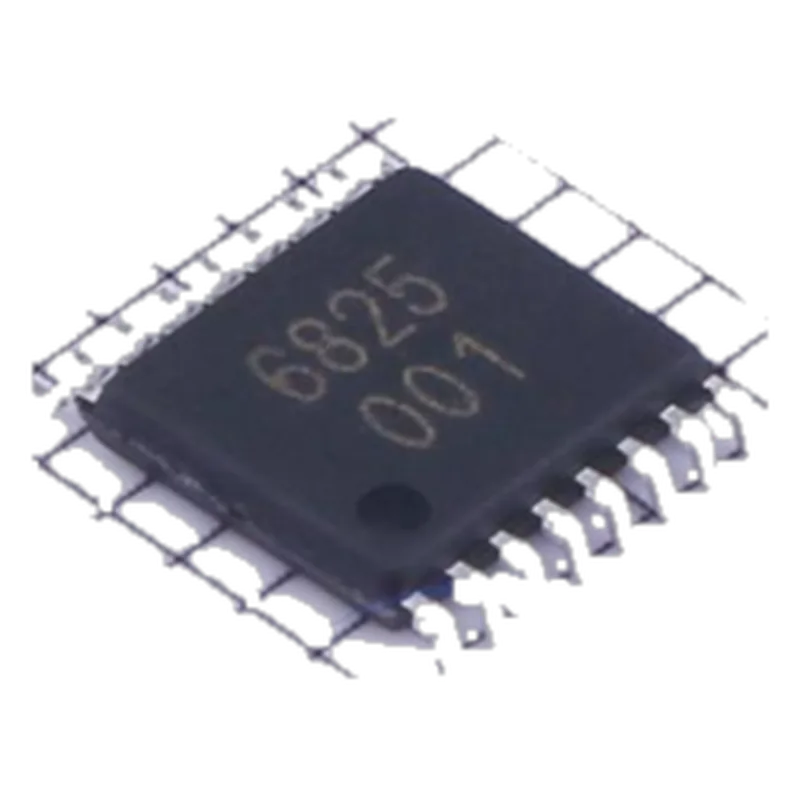

MagnTek MT6825 18-bit AMR Magnetic Angle Encoder IC
MagnTek (NOVOSENSE) · MPN MT6825GT-EED-R · Maglev ID ac-magntek-mt6825gt-eed
CN Maker in China, factory not confirmed unknown VERIFIED
18-bit AMR angle encoder IC (TSSOP-16) with SPI, ABZ up to 4096 ppr, UVW and PWM, 25,000 rpm; MagnTek's step between MT6816 and the 21-bit MT6835.
Specifications
| Resolution | 18-bit absolute |
|---|---|
| Accuracy | INL ±0.5° typ, ±1.0° max |
| Max speed | 25,000 rpm |
| Interface | SPI; ABZ (1–4096 pulses/rev); UVW (1–16 pole pairs); PWM |
| Form | IC, TSSOP-16 |
| Sensing | AMR |
| Supply | 3.3–5.0 V (3.0–5.5 V) |
| Bore | n/a |
| Latency | ≤2 µs system delay |
| Operating temp | -40 to +125 °C |
