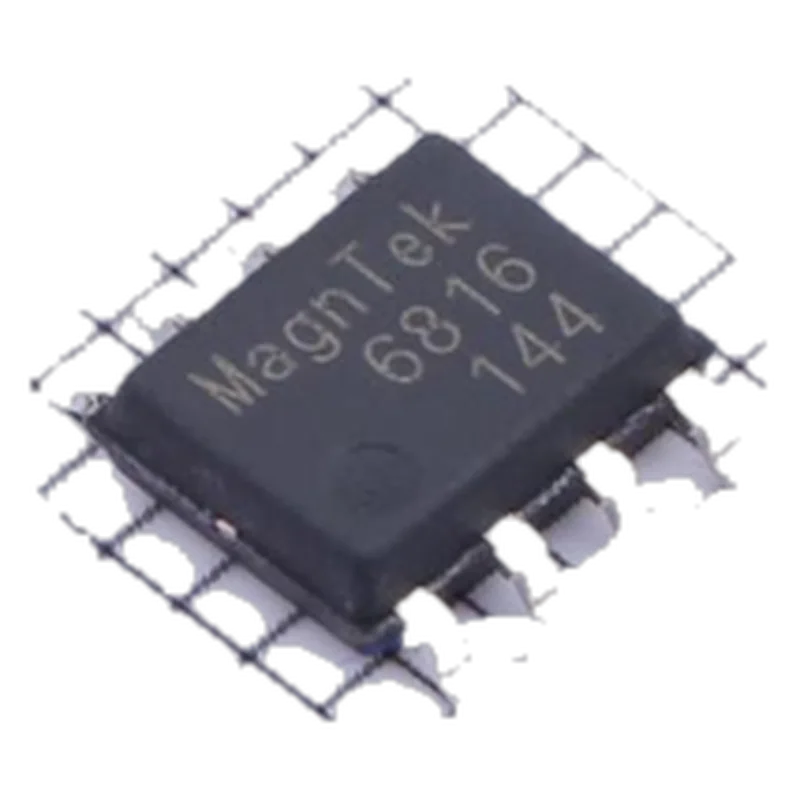

MagnTek MT6816 14-bit AMR Magnetic Angle Encoder IC
14-bit AMR angle encoder IC (SOP-8) with SPI, ABZ, UVW and PWM, 25,000 rpm and <2 µs latency, AEC-Q100; a low-cost Chinese drop-in for AS5047-class motor feedback.
Specifications
| Resolution | 14-bit absolute |
|---|---|
| Accuracy | INL ±0.75° typ, ±1.5° max |
| Max speed | 25,000 rpm |
| Interface | SPI; ABZ (1–1024 pulses/rev); UVW (1–16 pole pairs); PWM |
| Form | IC, SOP-8 |
| Sensing | AMR |
| Supply | 3.3–5.0 V (3.0–5.5 V) |
| Bore | n/a |
| Latency | <2 µs system delay |
| Operating temp | -40 to +125 °C |
