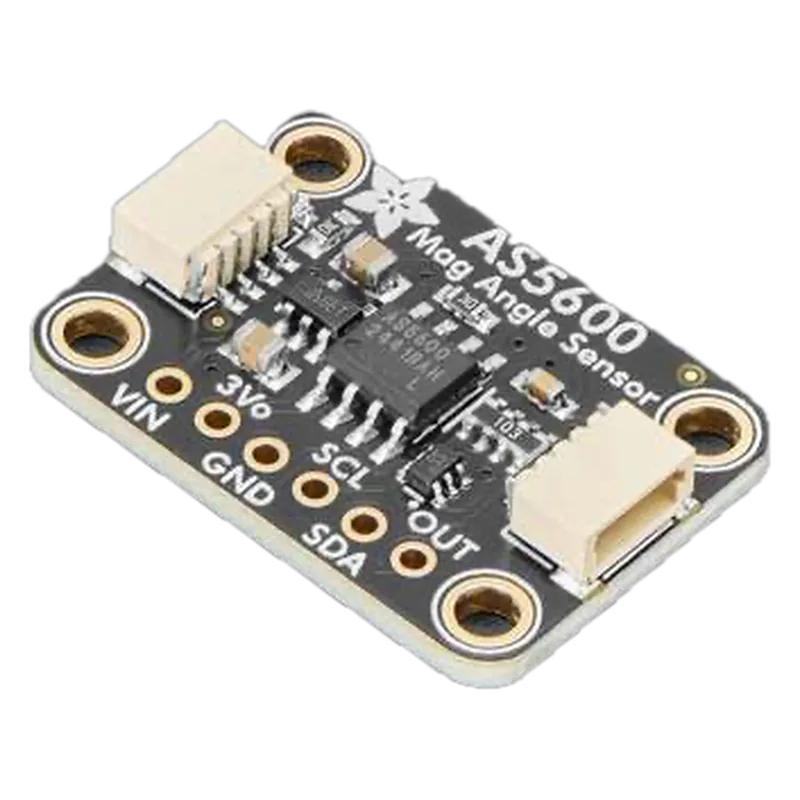

Adafruit AS5600 Magnetic Angle Sensor (STEMMA QT)
Adafruit · MPN 6357 · Maglev ID ac-adafruit-as5600-6357
US Maker in United States, factory not confirmed unknown REPORTED
Cheapest absolute magnetic angle board (I2C, Qwiic/STEMMA QT) for hobby joints and servo retrofits; not for high-speed commutation.
Specifications
| Resolution | 12-bit |
|---|---|
| Accuracy | System INL ±1° max (best-line fit, no magnet displacement, PWM/I2C) per AS5600 datasheet; Adafruit page claims 0.4° accuracy with its firmware |
| Max speed | unknown |
| Interface | I2C (STEMMA QT / Qwiic, address 0x36); analog or PWM on OUT pin; DIR pin |
| Form | eval / breakout board (AS5600 on STEMMA QT board; magnet sold separately) |
| Sensing | Hall |
| Supply | 3 V or 5 V (Adafruit); IC 4.5-5.5 V in 5 V mode, 3.0-3.6 V in 3.3 V mode |
| Bore | n/a |
| Operating temp | -40 to 125 °C (IC) |
Who makes it
MakerAdafruit Industries (board) / ams OSRAM (AS5600 IC)
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Resolution/interface are AS5600 IC facts, not read on the Adafruit page this pass. |
Equivalents from other makers
Sources
- https://www.adafruit.com/product/6357price tiers + stock
- https://www.infineon.com/row/public/documents/24/49/infineon-as5600-datasheet-en.pdfAS5600 datasheet: 12-bit, ±1° system INL, supply, temperature
- https://learn.adafruit.com/adafruit-as5600-magnetic-angle-sensor/pinoutsboard supply 3 V or 5 V, pins, I2C address
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
