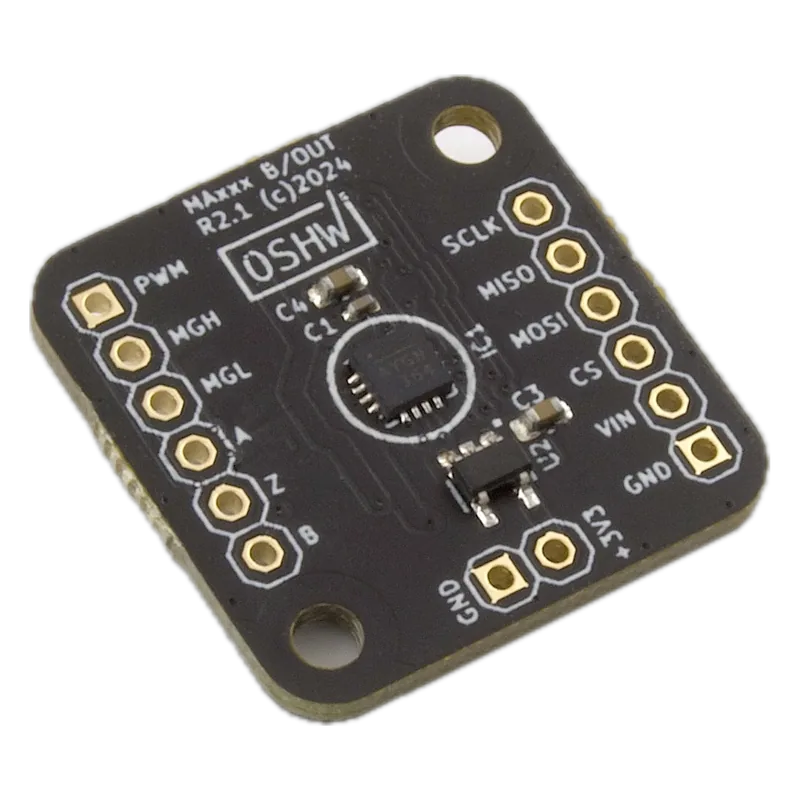

Tinymovr MA702 Magnetic Angle Sensor Breakout
Tinymovr · MPN MA702-R3 · Maglev ID ac-tinymovr-ma702-breakout
GR Maker in GR, factory not confirmed unknown VERIFIED
Low-cost MPS MA702 angle sensor breakout with magnet and cable, for an external motor or output encoder on small actuators.
Specifications
| Resolution | 12-bit |
|---|---|
| Accuracy | INL 0.7° at 25 °C, 1.1° over -40 to 125 °C (full field range); no user calibration table |
| Max speed | 0 to 60,000 rpm |
| Interface | SPI (6-pin JST-GH to Tinymovr R-series); all sensor pins on 2.54 mm headers (IC: SPI, ABZ 1-256 PPR, PWM; MPS parameter table also lists SSI) |
| Form | eval / breakout board (MA702 board, 3 mm holes on 25 mm diagonal; includes 5x2.5 mm diametric magnet and 300 mm JST-GH cable) |
| Sensing | unknown |
| Supply | 3.3-5 V via on-board LDO (IC 3.0-3.6 V) |
| Bore | n/a |
| Latency | 8 µs typ / 10 µs max constant-speed propagation delay |
| Operating temp | -40 to 125 °C (IC) |
