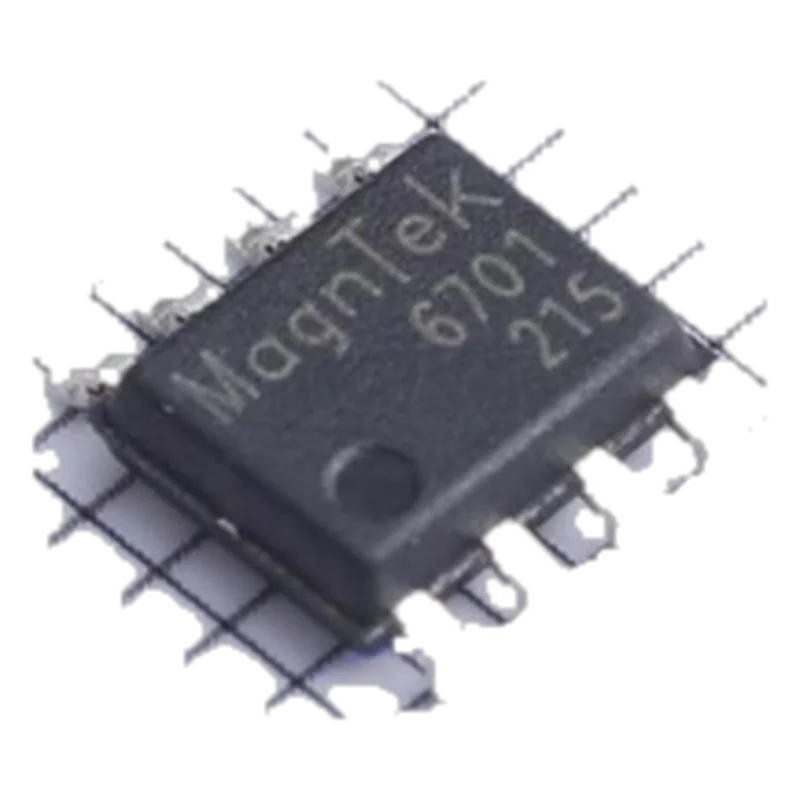

MagnTek MT6701 14-bit Hall Magnetic Angle Sensor IC
MagnTek (NOVOSENSE) · MPN MT6701CT-STD-R · Maglev ID ac-magntek-mt6701ct-std
CN Maker in China, factory not confirmed unknown VERIFIED
Low-cost 14-bit differential-Hall angle sensor IC from MagnTek; a common Chinese drop-in for AS5600/AS5048-class on-axis motor encoders.
Specifications
| Resolution | 14-bit absolute (I2C / SSI) |
|---|---|
| Accuracy | INL ±1.0° typ / ±1.5° max (max over -40 to 125 °C); no self-calibration mode stated |
| Max speed | 55,000 rpm |
| Interface | I2C; SSI (14-bit); ABZ (1-1,024 PPR programmable); UVW (1-16 pole pairs); analog voltage; PWM; Z-axis push detection |
| Form | IC (SOP-8; QFN3x3-16L also offered) |
| Sensing | Hall (differential) |
| Supply | 3.0-5.5 V (3.3 V or 5.0 V nominal); EEPROM programming needs VDD >4.5 V |
| Bore | n/a |
| Latency | 5 µs typ system delay at constant speed (<5 µs per feature list) |
| Operating temp | -40 to 125 °C |
Who makes it
MakerMagnTek (NOVOSENSE)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.lcsc.com/product-detail/C3003196.htmlprice, stock, package
- https://datasheet.lcsc.com/datasheet/pdf/935357a86952b28e12ac9bd3d186d5d1.pdf?productCode=C3003196datasheet: 14-bit absolute angle over I2C/SSI, 55,000 rpm, ABZ/UVW/analog/PWM outputs
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
