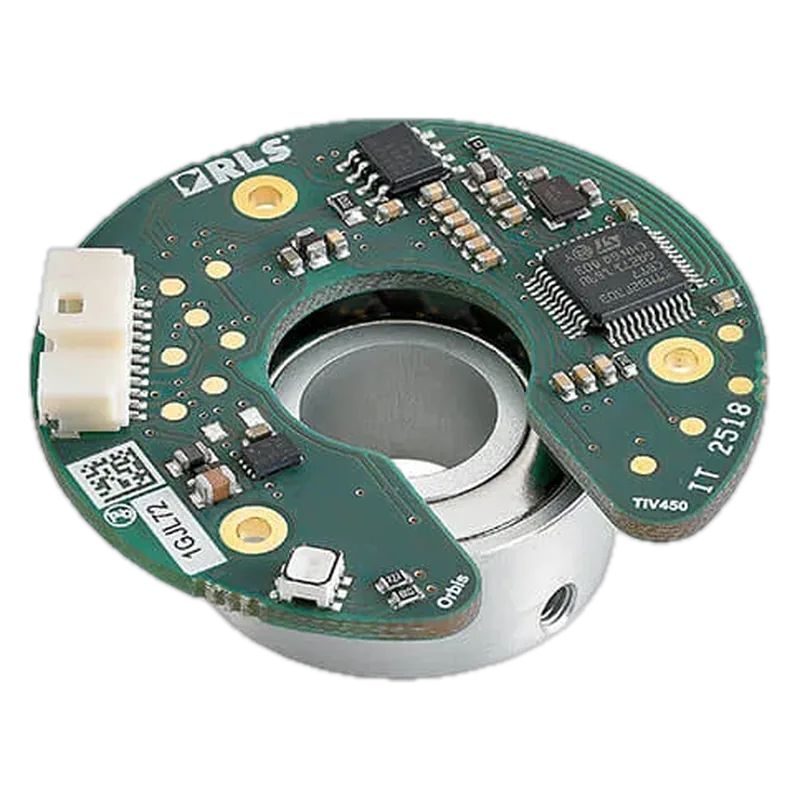

RLS Orbis True Absolute Through-Hole Rotary Encoder
RLS · MPN Orbis (BR10 readhead family; configured) · Maglev ID ac-rls-orbis
SI Maker in Slovenia, factory not confirmed unknown VERIFIED
Compact 14-bit through-hole absolute magnetic encoder for when an on-axis encoder can't sit at the shaft end; budget sibling of AksIM.
Specifications
| Resolution | 14-bit |
|---|---|
| Accuracy | ±0.25° (BR10), ±0.3° (BR20), ±0.5° (BR30); thermal drift ±0.003°/°C; optional self-calibration after installation |
| Max speed | 12,000 rpm |
| Interface | BiSS C; SSI; SPI; asynchronous serial (UART); PWM; analog sin/cos, ABZ and UVW in separate BRD14 variant |
| Form | hollow-shaft module (through-hole PCB readhead + BM ring magnet, axial reading) |
| Sensing | Hall |
| Supply | 4.5-5.5 V at connector |
| Bore | magnet ID 12, 16, 22 or 30 mm (BM magnet options) |
| Outer diameter | magnet OD 19, 24, 32 or 44 mm |
| Multi-turn | yes, 16-bit counter option (stored, ±90° unpowered limit); battery-backup multiturn (BBM) variant per BRD08 |
| Operating temp | -40 to 105 °C |
| Latency | unknown |
