iC-Haus iC-MU150 EVAL MU1M Off-Axis Encoder Evaluation Kit (2-Track Nonius)
iC-Haus · MPN iC-MU150 EVAL MU1M · Maglev ID ac-ichaus-ic-mu150-eval-mu1m
DE Maker in Germany, factory not confirmed unknown VERIFIED
Evaluation kit for the iC-MU150 off-axis Hall encoder IC with a 2-track nonius magnet; the German benchmark for hollow-shaft absolute joint encoders.
Specifications
| Resolution | up to 18, 19 or 20 bit nonius absolute for 16, 32 or 64 master pole pairs (12-bit per sine period, 14-bit filtered); the kit target's pole count not stated on pages read |
|---|---|
| Accuracy | unknown as system accuracy; IC interpolation accuracy 2 LSB of 12-bit per sine period (ideal input signals) |
| Max speed | 24,000 rpm (16 pole pairs), 12,000 (32), 6,000 (64) |
| Interface | SPI; BiSS C; SSI; ABZ incremental (FlexCount 1-65,536 CPR); UVW commutation (1-16 pole pairs); analog sin/cos; I2C to config EEPROM |

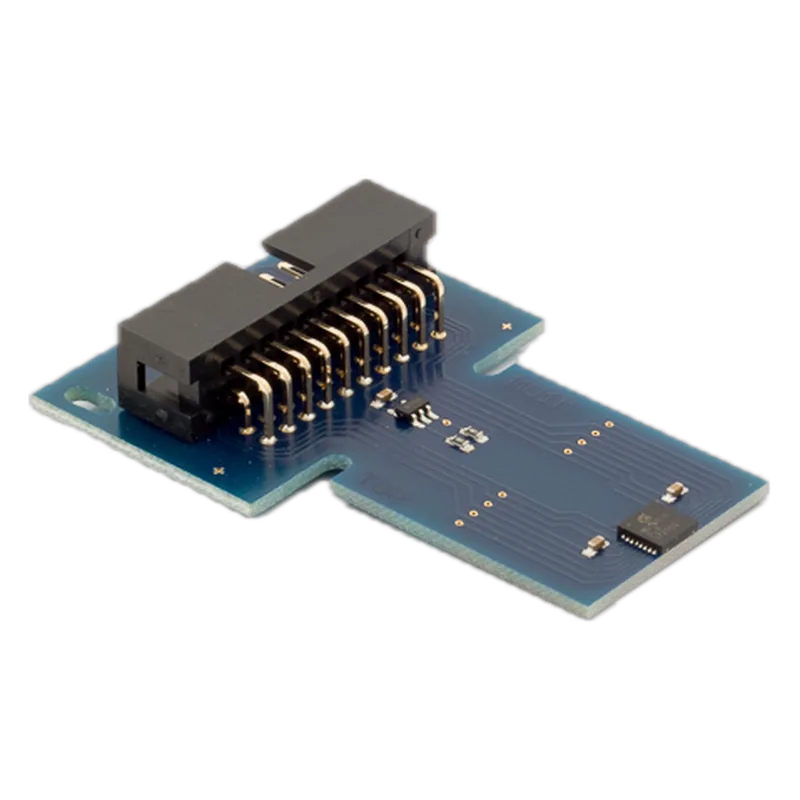

| Form | eval / breakout board (iC-MU150 DFN16-5x5 on eval PCB with ribbon header; listed as kit for 2-track nonius system) |
| Sensing | Hall (2-track nonius, off-axis) |
| Supply | 4.5-5.5 V (5 V nominal) |
| Bore | unknown |
| Latency | 11 µs analog signal path |
| Multi-turn | no on-chip; interface to synchronize external multiturn systems |
| Operating temp | -40 to 110 °C (DFN16) |
