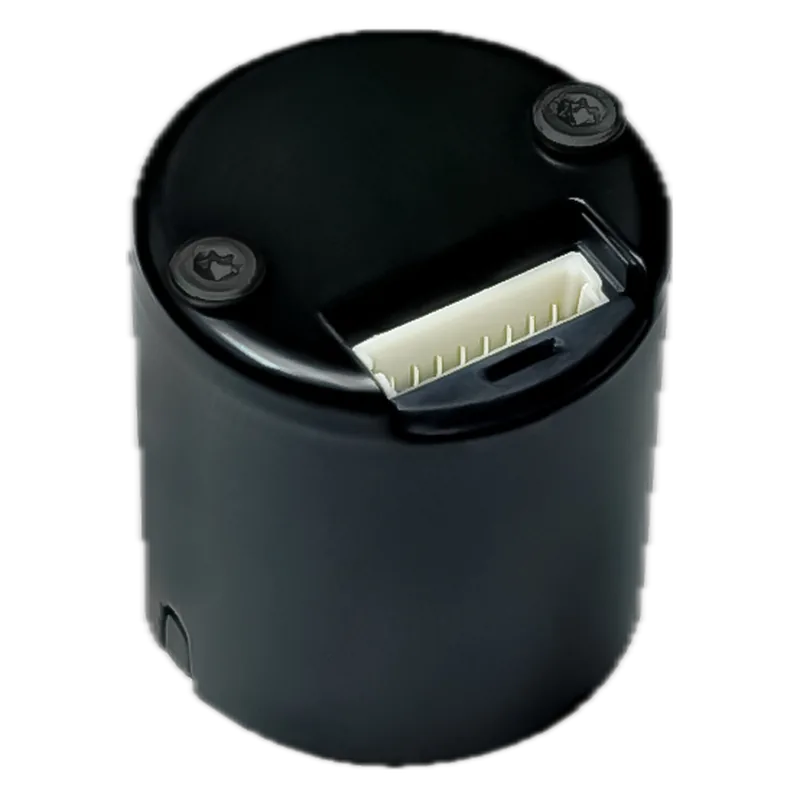

POSITAL IXARC 20 mm Miniature Multiturn Kit Encoder, BiSS C, 17-bit (KTD-BC00B-1617-LE2A-BAQ)
POSITAL · MPN KTD-BC00B-1617-LE2A-BAQ · Maglev ID ac-posital-ktd-bc00b-1617-le2a-baq
DE Maker in Germany, factory not confirmed unknown VERIFIED
20 mm TMR kit encoder with battery-free Wiegand multiturn for 2 mm motor shafts; POSITAL's slim option for small robot joints and steppers.
Specifications
| Resolution | 17 bit singleturn + 16 bit multiturn (pre-programmed) |
|---|---|
| Accuracy | INL ±0.0878° (≤12 bit) measured after calibration at room temp. |
| Max speed | 12,000 rpm max permissible electric speed |
| Interface | BiSS C, RS422 driver; JST-SR PCB connector |
| Form | on-axis module: kit encoder with hub for 2 mm shaft (set screw), no bearings |
| Sensing | TMR (magnetic) + Wiegand multiturn |
| Supply | 4.5 to 5.5 VDC |
| Bore / ring ID | n/a |
| Multiturn | yes, battery-free Wiegand (16 bit) |
| Operating temp | -40 °C to +105 °C |
Who makes it
MakerFRABA / POSITAL
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.posital.com/en/products/kit-encoders/KTD-BC00B-1617-LE2A-BAQ/3433213technical data, lifecycle, image
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
