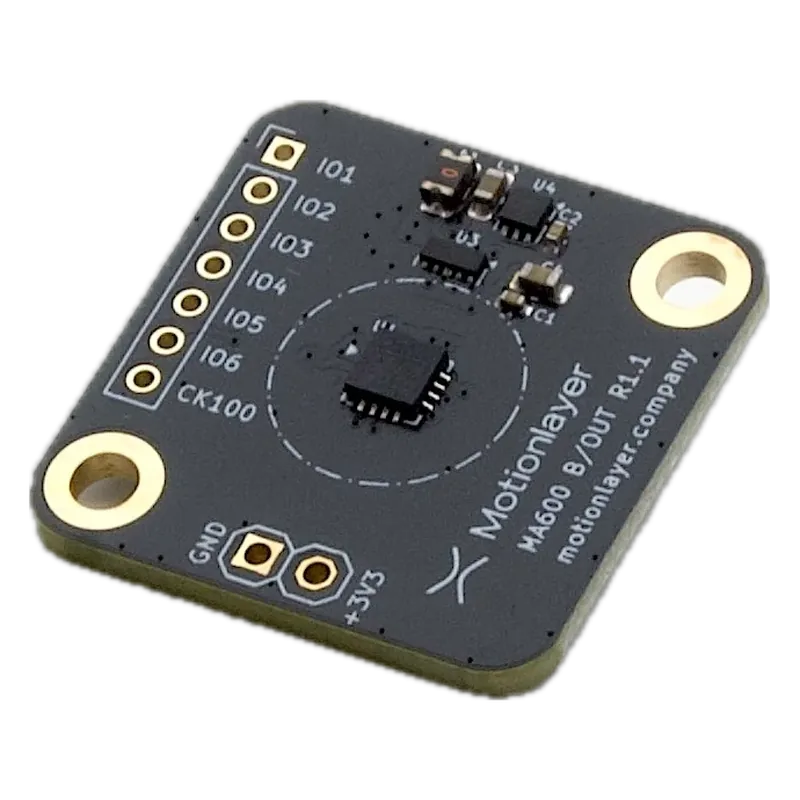

Tinymovr MA600 TMR Angle Sensor Breakout
Tinymovr · Maglev ID ac-tinymovr-ma600-breakout
GR Maker in GR, factory not confirmed unknown VERIFIED
MA600 TMR sensor breakout with LDO, TVS protection and a JST-GH cable for Tinymovr R-series; works end-of-shaft or off-axis.
Specifications
| Resolution | 12- to 15-bit configurable (noise-free 12.3 bit at 17 kHz bandwidth up to 15 bit at 75 Hz, set by filter window) |
|---|---|
| Accuracy | <0.6° INL; <0.1° INL after user calibration with on-chip 32-point lookup table (board maker states <0.1° after calibration) |
| Max speed | unknown |
| Sensing | TMR |
| Bore | n/a |
| Latency | 0 µs ("no latency", latency cancellation at constant speed) |
| Operating temp | -40 to 125 °C (IC) |
| Interface | SPI (6-pin JST-GH to Tinymovr R-series); all GPIO broken out on 2.00 mm headers (IC offers SSI, ABZ, UVW, PWM) |
| Form | eval / breakout board (MA600 board, 3 mm holes on 24 mm diagonal; includes 5x2.5 mm diametric magnet and 300 mm JST-GH cable) |
| Supply | 3.3-5 V via on-board LDO; 3.3 V output up to 100 mA |
Who makes it
MakerTinymovr (MotionLayer P.C.)
Based inGR
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Works with
Sources
- https://tinymovr.com/products/ma600-high-resolution-magnetic-absolute-angle-sensor-breakoutdescription, <0.1° INL after calibration, price, stock
- https://www.monolithicpower.com/en/ma600.htmlMA600 product page: INL, resolution, latency, supply, temperature
- https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MA600GQ/document_id/10535/MA600 datasheet Rev 1.0
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
