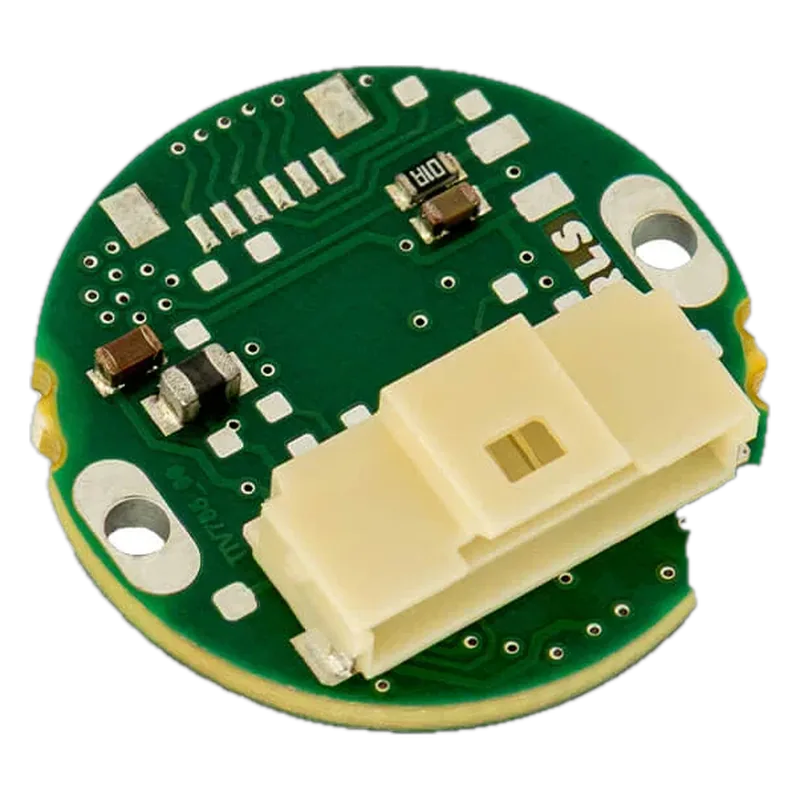

RLS OnAxis RTB20 High-Resolution TMR Encoder Board (20 mm)
RLS · MPN RTB20 (configured) · Maglev ID ac-rls-rtb20
SI Maker in Slovenia, factory not confirmed unknown VERIFIED
Ø20 mm TMR on-axis encoder board with up to 18-bit incremental output and UVW commutation; a motor-side encoder for compact BLDC joint motors.
Specifications
| Resolution | incremental up to 18 bit, decimal to 260k CPR (incremental, not absolute) |
|---|---|
| Accuracy | typ. ±0.5°; no hysteresis |
| Max speed | 30,000 rpm (lower at highest resolutions) |
| Interface | Incremental ABZ RS422; UVW commutation (up to 256 pole pairs) |
| Form | on-axis module: Ø20 mm encoder board + magnet |
| Sensing | TMR |
| Supply | 5 V ±5 % |
| Bore / ring ID | n/a |
| Outer diameter | Ø20 mm |
| Operating temp | -40 °C to +105 °C (connector-limited) |
