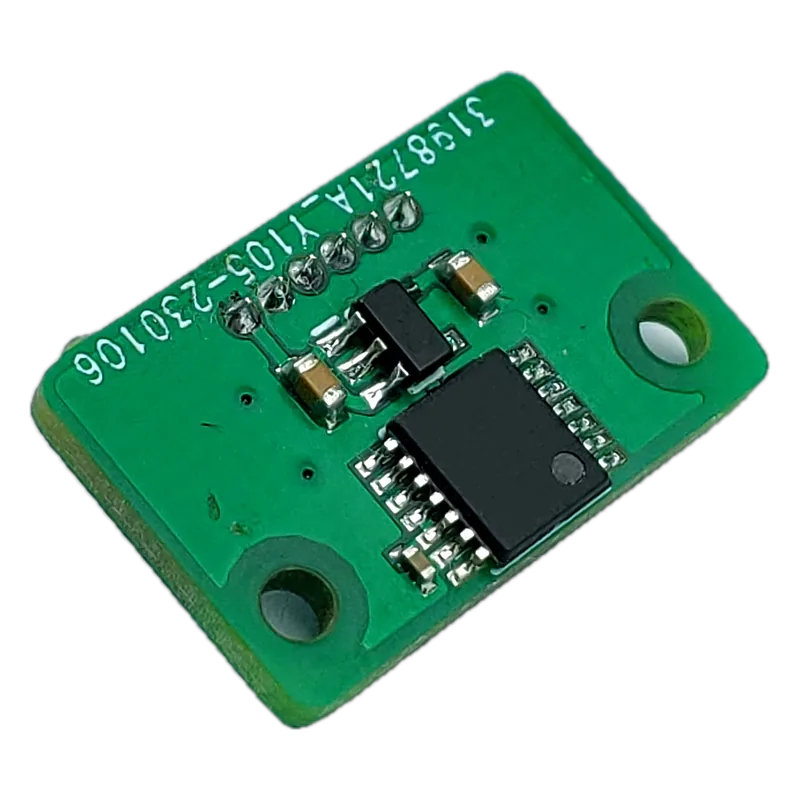

MAB Robotics ME-am v1.0 Absolute Output Encoder (for MD controllers)
19 x 12 mm 14-bit absolute output encoder add-on for MAB MD20/MD80 joint controllers, sold with cable and an on-axis or off-axis ring magnet; the cheap output-side encoder for legged-robot actuators.
Specifications
| Resolution | 14 bit |
|---|---|
| Accuracy | 0.3° axial; >1.0° off-axis configuration |
| Max speed | unknown |
| Interface | MAB AUX1 6-pin PicoBlade to MD20/MD80 controller |
| Form | eval / breakout board: 19 x 12 x 6 mm board + magnet (on-axis or off-axis ring) + cable |
| Sensing | magnetic (chip not stated) |
| Supply | unknown (powered from MD controller) |
| Bore / ring ID | n/a (on-axis) or ring magnet ID per option (off-axis) |
Who makes it
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://www.mabrobotics.pl/product-page/me-amprice, specs, image
- https://mabrobotics.github.io/MD80-x-CANdle-Documentation/MD/encoders.htmlconnection to MD controllers, magnet options
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
