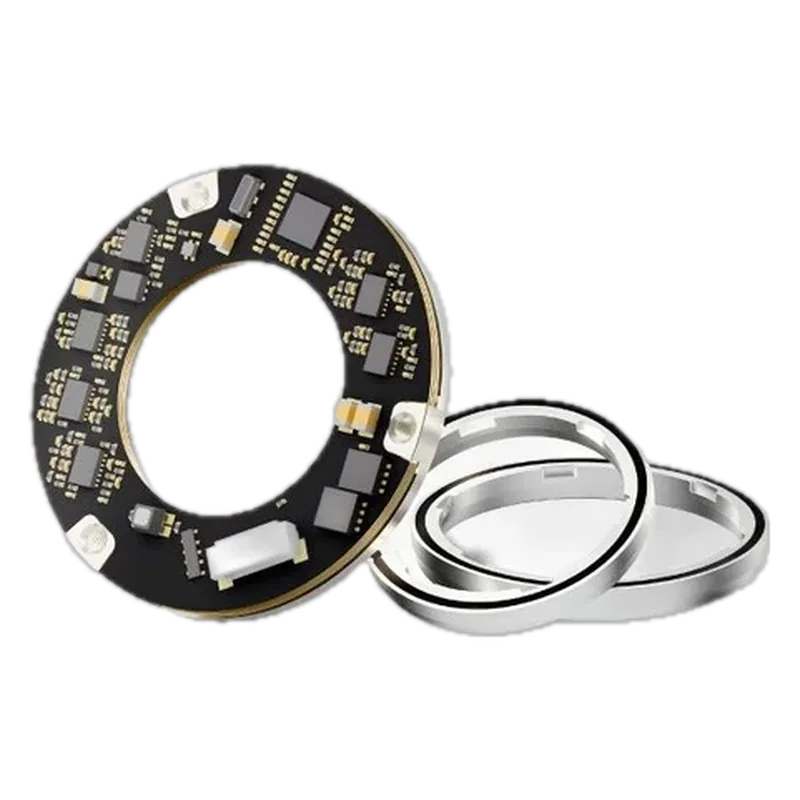

KingKong DPT Series Robot Joint Dual Magnetic Encoder, 24-bit
KingKong Technology · MPN DPT series (DPT-10-25 to DPT-30-45) · Maglev ID ac-kingkong-dpt
CN Maker in China, factory not confirmed unknown REPORTED
Two-in-one hollow magnetic encoder (motor + output side) for geared robot joints, 24-bit, from Beijing KingKong.
Specifications
| Resolution | 24-bit on each of two axes (inner and outer ring) |
|---|---|
| Accuracy | ±0.01° per axis (assembly dependent); factory-calibrated |
| Max speed | 8,000 rpm |
| Interface | RS-485 or BiSS-C; baud 2.5 M default or 5 M |
| Form | off-axis ring kit, dual (two concentric magnet rotor rings + one stator PCB, 7 mm ring width; thread or bonding rotors) |
| Sensing | magnetoelectric, patterned magnet ring (sensor type not stated) |
| Supply | 4.5-5.5 V (5 V) |
| Bore | inner rotor ID 9 mm (DPT-10-15-25) to 29 mm (DPT-30-35-45) |
| Outer diameter | stator OD 25 to 45 mm |
| Multi-turn | unknown (no multiturn option in DPT part code) |
| Operating temp | -40 to 85 °C, -40 to 105 °C or -40 to 125 °C (grade A/B/C) |
Who makes it
MakerKingKong Technology
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Works with
Sources
- https://aifitlab.com/products/kingkong-dpt-series-robot-dual-encoder24-bit, ±0.01° (assembly dependent), 4.5-5.5 V, ~140 mA, 15 ms startup, price, stock
- https://cdn.shopify.com/s/files/1/0673/6848/5000/files/KingKong_Technology_DPT_Magnetic_Dual_Encoder_Datasheet_v0.6.pdf?v=1789887152DPT datasheet v0.6: dual 24-bit, ±0.01°, 8,000 rpm, RS485/BiSS-C, size table, temperature grades
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
