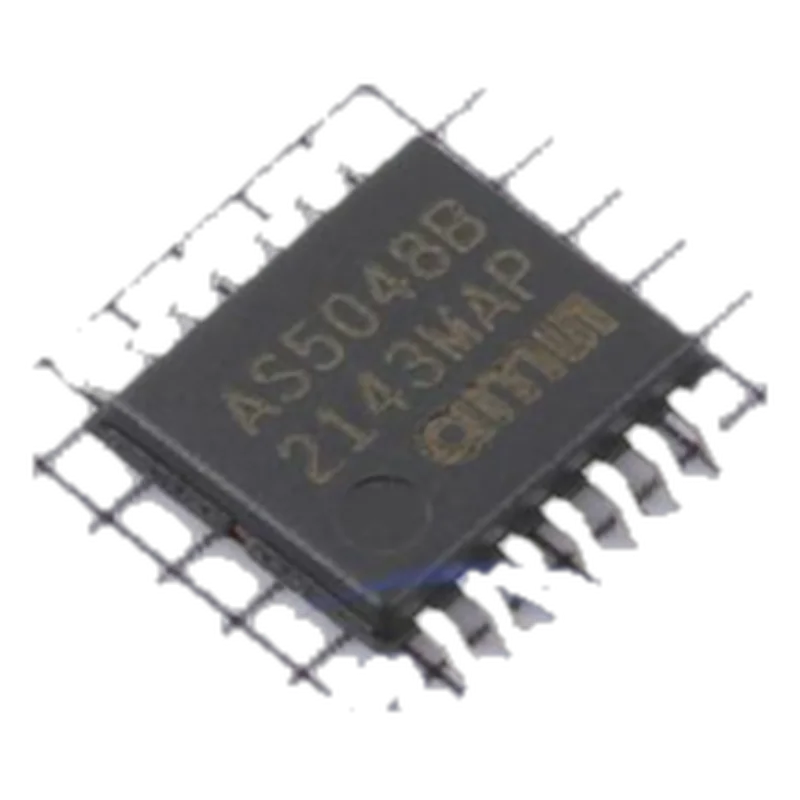

ams OSRAM AS5048B 14-bit I²C Magnetic Angle Sensor IC
ams OSRAM · MPN AS5048B-HTSP-500 · Maglev ID ac-ams-as5048b-htsp
AT Maker in Austria, factory not confirmed unknown VERIFIED
I²C version of the AS5048 14-bit angle sensor (with PWM output) for multi-drop buses where SPI chip-selects are scarce.
Specifications
| Resolution | 14-bit (0.0219°/LSB) |
|---|---|
| Accuracy | INL ±0.8° @25 °C optimum placement; ±1° over temperature; ±1.2° with magnet displacement |
| Max speed | unknown |
| Interface | I²C; PWM |
| Form | IC, TSSOP-14 |
| Sensing | Hall |
| Supply | 3.0–3.6 V or 4.5–5.5 V |
| Bore | n/a |
| Operating temp | -40 to +150 °C |
Who makes it
Makerams OSRAM
Based inAustria
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.lcsc.com/product-detail/C2655184.htmlprice breaks, stock, package, supply range (LCSC listing / product API)
- https://datasheet.lcsc.com/datasheet/pdf/1c1997738008fabd21440bce08382303.pdf?productCode=C2655184datasheet: shared AS5048 datasheet: 14-bit, I²C variant, INL ±0.8°/±1°
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
